Pitch : 3.50, 3.81mm
Material
Pin Header : Brass Tin Plated
Housing : PA66, UL94V - 0
Electrical
Rated Voltage : 300V.
Rated Current : 8A.
Contact Resistance : 20mOhm
Withstanding Voltage : AC150V/1Min
Mechanical
Temp. Range : - 40C to +105C
Max. Soldering : +250C for 5sec.

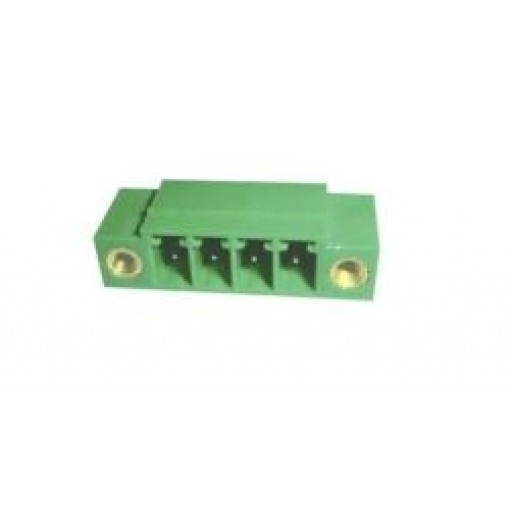

KF222-3.5R-XX,F223R-3.81R-XX
- Product Code: KF222-3.5R-XX,F223R-3.81R-XX
- Availability: Pre-Order
