Pitch : 3.50, 3,81mm
MATERIAL :
Pin Header Brass, Tin plated
Housing PA66, UL94V - 0
ELECTRICAL :
Rated voltage 300V
Rated Current 8A.
Contact resistance 20mOhm
Insulation resistance 5000Mohm/1000V
Withstanding Voltage AC1500/1Min.
MECHANICAL :
Temp. Range - 40C to +105C
Max Soldering + 250C for 5 sec.
MATERIAL :
Pin Header Brass, Tin plated
Housing PA66, UL94V - 0
ELECTRICAL :
Rated voltage 300V
Rated Current 8A.
Contact resistance 20mOhm
Insulation resistance 5000Mohm/1000V
Withstanding Voltage AC1500/1Min.
MECHANICAL :
Temp. Range - 40C to +105C
Max Soldering + 250C for 5 sec.

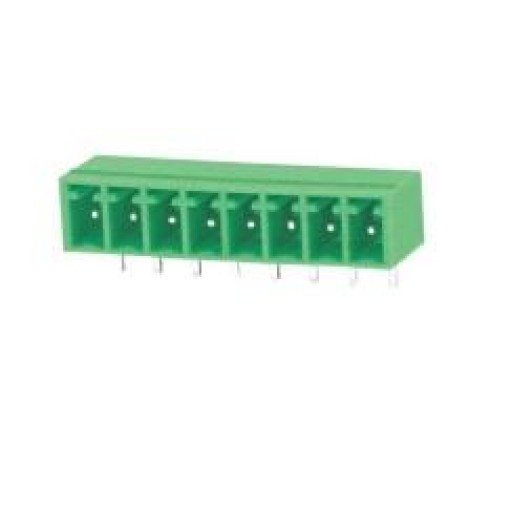

KF2EDGK-3.5R-3.81R-XX
- Product Code: KF2EDGK-3.5R-3.81R-XX
- Availability: Pre-Order
