Pitch : 3.50, 3,81mm
MATERIAL :
Screws M2 Steel Zinc plated
Contact Phosphor bronze
Housing PA66, UL94V - 0
ELECTRICAL :
Rated voltage 300V
Rated Current 8A.
Contact resistance 20mOhm
Insulation resistance 5000Mohm/1000V
Withstanding Voltage AC1500/1Min.
Wire range 28 - 16AWG 1.5mm2
MECHANICAL :
Temp. Range - 40C to +105C
Max. Soldering +250C for 5 sec.
Torque 0,2Nm (1.7lb.in)
Strip Lenght 6 - 7mm

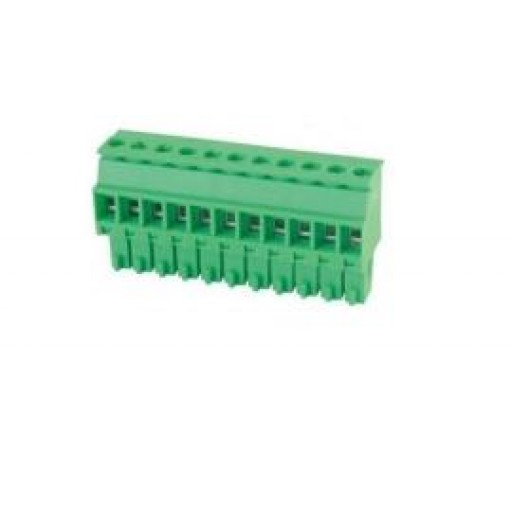

KF2EDGKA-3.5-3.81-XX
- Product Code: KF2EDGKA-3.5-3.81-XX
- Availability: Pre-Order
