Pitch : 5,00, 10,0mm
MATERIAL :
Screws M3 Steel Zinc plated
wire guard phosphhor bronze Ni plated
or stainless steel
Pin Header Brass, Tin plated
Housing PBT, UL94V - 0
ELECTRICAL :
Rated voltage 300V
Rated Current 12A.
Contact resistance 20mOhm
Insulation resistance 5000Mohm/1000V
Withstanding Voltage AC1500/1Min.
Wire range 22 - 14AWG 2.5mm2
MECHANICAL :
Temp. Range - 30C to +120C
Max. Soldering +250C for 5 sec.
Torque 0,4Nm (3.6lb.in)
Strip Lenght 4.5 - 5mm

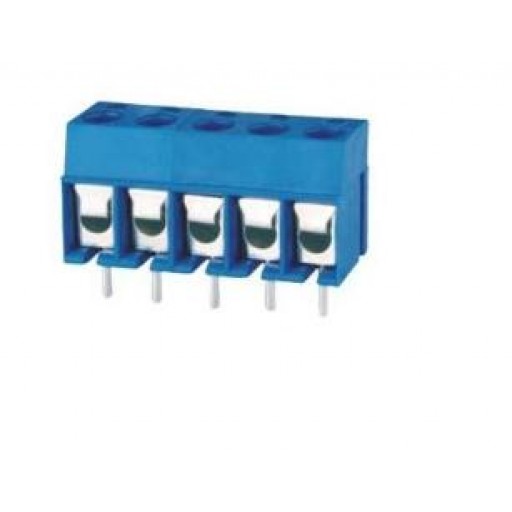

KF300-5.0-10.0-XX
- Product Code: KF300-5.0-10.0-XX
- Availability: Pre-Order
