Pitch : 5,00mm
MATERIAL :
Screws M2.5 Steel Zinc plated
Contact Brass
Pin Header Brass, Tin plated
Housing PA66, UL94V - 0
ELECTRICAL :
Rated voltage 150V
Rated Current 15A.
Contact resistance 20mOhm
Insulation resistance 5000Mohm/1000V
Withstanding Voltage AC1500/1Min.
Wire range 26 - 16AWG 1.5mm2
MECHANICAL :
Temp. Range - 40C to +105C
Max. Soldering +250C for 5 sec.
Torque 0,5Nm (3.6lb.in)
Strip Lenght 5 - 6mm

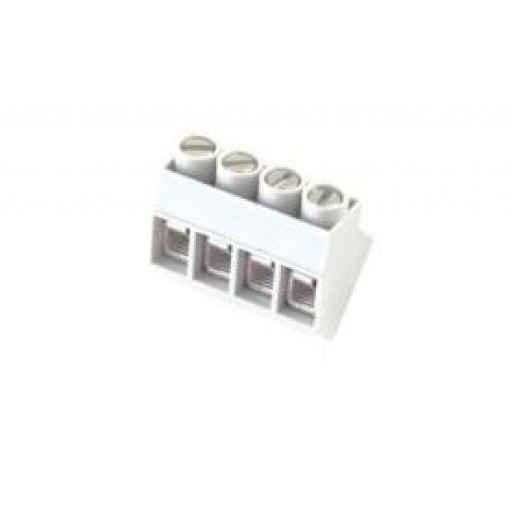

KF168-5.0-XX
- Product Code: KF168-5.0-XX
- Availability: Pre-Order
